PILLOW SPEAKER BREAKAWAY CABLES
REDUCE REPAIR COSTS
Pillow speakers need to hold up to the rigors of constant use by patients. To help reduce plug and patient station damage from excessive pulling, simply add a low cost Pillow Speaker Breakaway Cable which protects both by breaking apart cleanly when pulled in any direction.
- Designed to reduce the need for repair, not just make frequent cable replacements faster
- A small investment that can pay for itself in less than the cost of a single pillow speaker or patient station repair

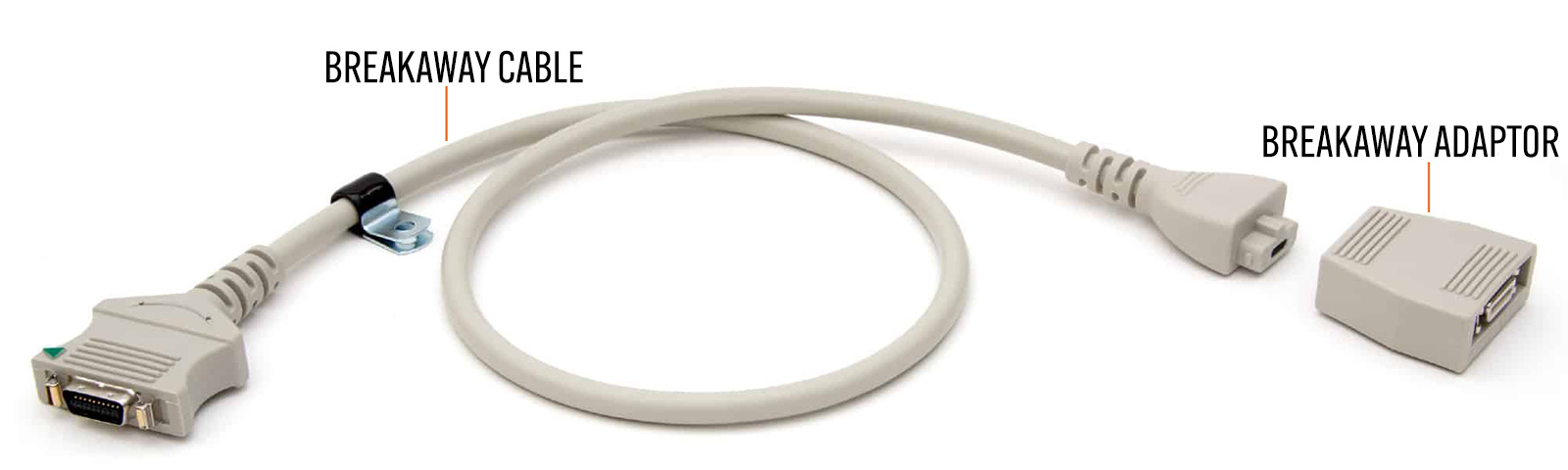

Breakaway cables for HIllrom systems include an adaptor to convert a Hillrom locking connector to a breakaway connector.
PILLOW SPEAKER BREAKAWAY CABLES
NURSE CALL SYSTEM | PILLOW SPEAKER PLUG END | LENGTH | MODEL | PART NUMBER |
---|---|---|---|---|
Austco | 8-Pin DIN | 8" | JUP-1901-008 | 15084 |
Austco | 8-Pin DIN | 24" | JUP-1901-024 | 20083 |
Hillrom COMLinx, COMposer, NaviCare | 20-Pin | 24” | JUP-5335-200 | 25000 |
Intercall Legend II, Equinox II, Spectrum II, Ultra 6000, 6900, 9000 | 8-Pin DIN | 10" | JUP-1000-010-002 | 8482 |
Intercall Legend II, Equinox II, Spectrum II, Ultra 6000, 6900, 9000 | 8-Pin DIN | 10" with 60º plug | JUP-1003-010-002 | 8489 |
Intercall Legend II, Equinox II, Spectrum II, Ultra 6000, 6900, 9000 | 8-Pin DIN | 24" | JUP-1000-024-002 | 8483 |
Intercall Legend II, Equinox II, Spectrum II, Ultra 6000, 6900, 9000 | 8-Pin DIN | 30" | JUP-1000-030-002 | 8484 |
Jeron Pro-Alert 640, Provider 680, Spectrum Pro IR | 8-Pin DIN | 10" | JUP-1000-010-002 | 8482 |
Jeron Pro-Alert 640, Provider 680, Spectrum Pro IR | 8-Pin DIN | 10" with 60º plug | JUP-1003-010-002 | 8489 |
Jeron Pro-Alert 640, Provider 680, Spectrum Pro IR | 8-Pin DIN | 24" | JUP-1000-024-002 | 8483 |
Jeron Pro-Alert 640, Provider 680, Spectrum Pro IR | 8-Pin DIN | 30" | JUP-1000-030-002 | 8484 |
Jeron Provider 680+, Provider 790 | 8-Pin DIN (bell shape) | 10" | JUP-1008-010-002 | 8492 |

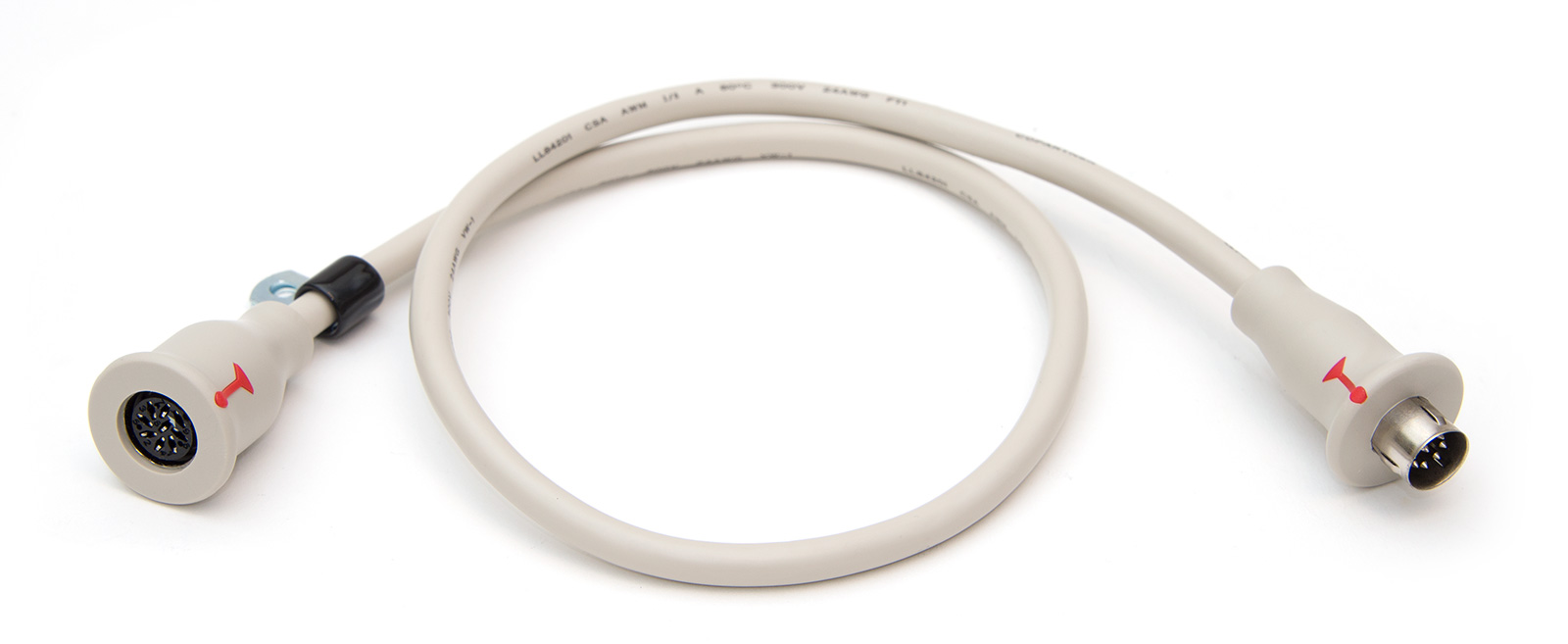

Rauland Responder 5 | 9-Pin DIN | 24" | JUP-9000-2 | 8518 |
Rauland R3+, R4, R4000, R5000 | 8-Pin DIN | 10" | JUP-1000-010-002 | 8482 |
Rauland R3+, R4, R4000, R5000 | 8-Pin DIN | 10" with 60º plug | JUP-1003-010-002 | 8489 |
Rauland R3+, R4, R4000, R5000 | 8-Pin DIN | 24" | JUP-1000-024-002 | 8483 |
Rauland R3+, R4, R4000, R5000 | 8-Pin DIN | 30" | JUP-1000-030-002 | 8484 |
TekTone Tek-CARE, NC300 II, Tek-CARE 400 | 8-Pin DIN | 10" | JUP-1000-010-002 | 8482 |
TekTone Tek-CARE, NC300 II, Tek-CARE 400 | 8-Pin DIN | 24" | JUP-1000-024-002 | 8483 |
TekTone Tek-CARE, NC300 II, Tek-CARE 400 | 8-Pin DIN | 30" | JUP-1000-030-002 | 8484 |
West-Com Odyssey, Odyssey Plus, Novus | 10-Pin Modular | 6" | JU06-311 | 8124 |
West-Com Odyssey, Odyssey Plus, Novus | 10-Pin Modular | 12" | JU12-200 | 8167 |
West-Com Odyssey, Odyssey Plus, Novus | 12-Pin | 12" | JUP-1002-001 | 8488 |
West-Com West-Call 1000, 8000, Endeavor, Marc II | 8-Pin Modular | 6" | JU06-311 | 8124 |
PILLOW SPEAKER EXTENSION CABLES
For extending the cable length of pillow speakers
NURSE CALL SYSTEM | PILLOW SPEAKER PLUG END | LENGTH | MODEL | PART NUMBER |
---|---|---|---|---|
Intercall Legend II, Equinox II, Spectrum II, Ultra 6000, 6900, 9000 | 8-Pin DIN | 7' | JUP-1000-084-002 | 8485 |
Intercall Legend II, Equinox II, Spectrum II, Ultra 6000, 6900, 9000 | 8-Pin DIN | 12' | JUP-1000-144-002 | 8486 |
Jeron Pro-Alert 640, Provider 680, Spectrum Pro IR | 8-Pin DIN | 7' | JUP-1000-084-002 | 8485 |
Jeron Pro-Alert 640, Provider 680, Spectrum Pro IR | 8-Pin DIN | 12' | JUP-1000-144-002 | 8486 |
Rauland Responder 5 | 9-Pin DIN | 5' | JUP-9000-5 | 21741 |
Rauland R3+, R4, R4000, R5000 | 8-Pin DIN | 7' | JUP-1000-084-002 | 8485 |
Rauland R3+, R4, R4000, R5000 | 8-Pin DIN | 12' | JUP-1000-144-002 | 8486 |
TekTone Tek-CARE, NC300 II, Tek-CARE 400 | 8-Pin DIN | 7' | JUP-1000-084-002 | 8485 |
TekTone Tek-CARE, NC300 II, Tek-CARE 400 | 8-Pin DIN | 12' | JUP-1000-144-002 | 8486 |
West-Com Odyssey, Odyssey Plus, Novus | 10-Pin Modular | 6' | JU72-580 | 8426 |
West-Com West-Call 1000, 8000, Endeavor, Marc II | 8-Pin Modular | 6' | JU72-580 | 8426 |
