ADAPTORS
The needs of some patients may require that multiple nurse call devices are connected to your nurse call system. Our line of adaptors will give your nurse call system the flexibility to handle this increased demand. They’re easy to install, feature strain relief on the cable, and are available with numerous receptacle options. Please call your Curbell representative to discuss the most effective solution for your specific needs.

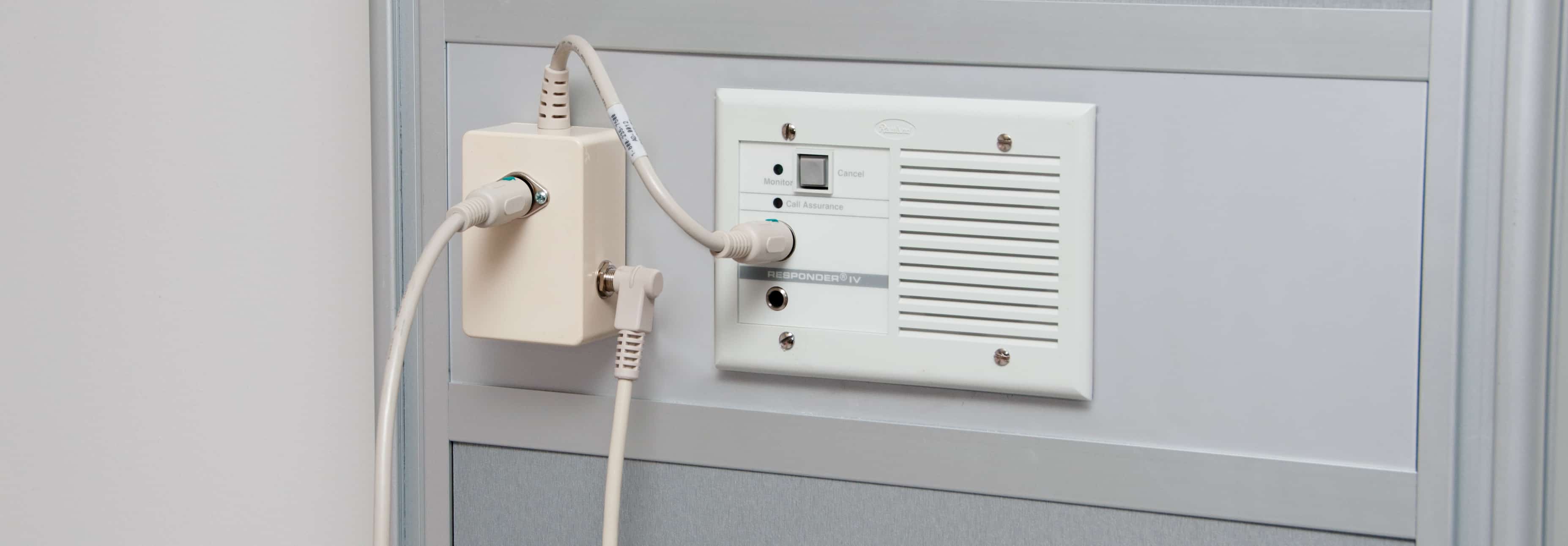

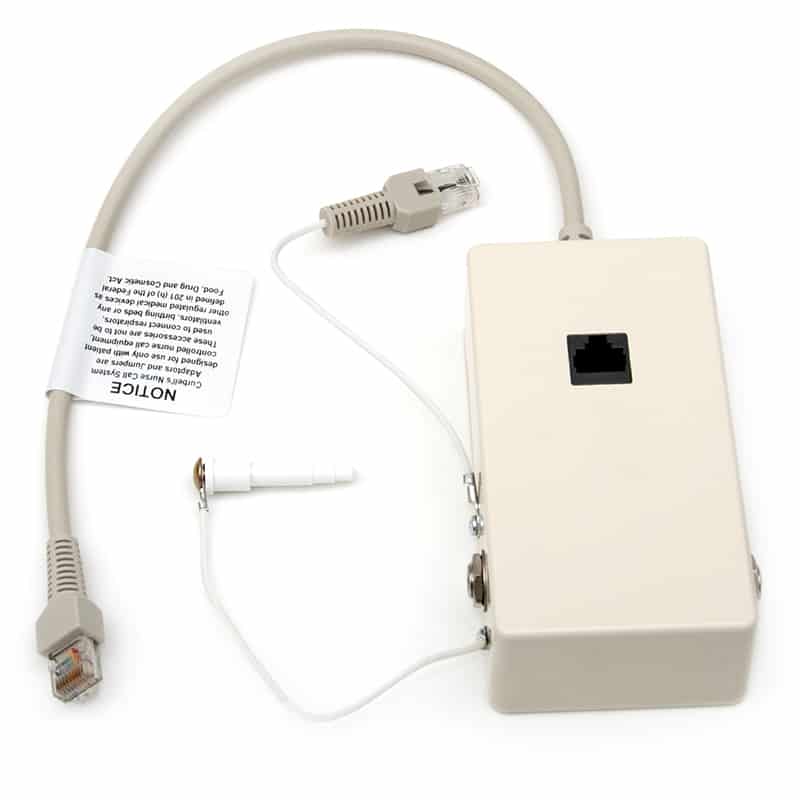

BOX ADAPTOR
A mountable box style adaptor allows you to safely expand the interface capabilities of the in-room patient station. Curbell offers adaptors that have been tested directly with the nurse call systems to verify patient and system safety.

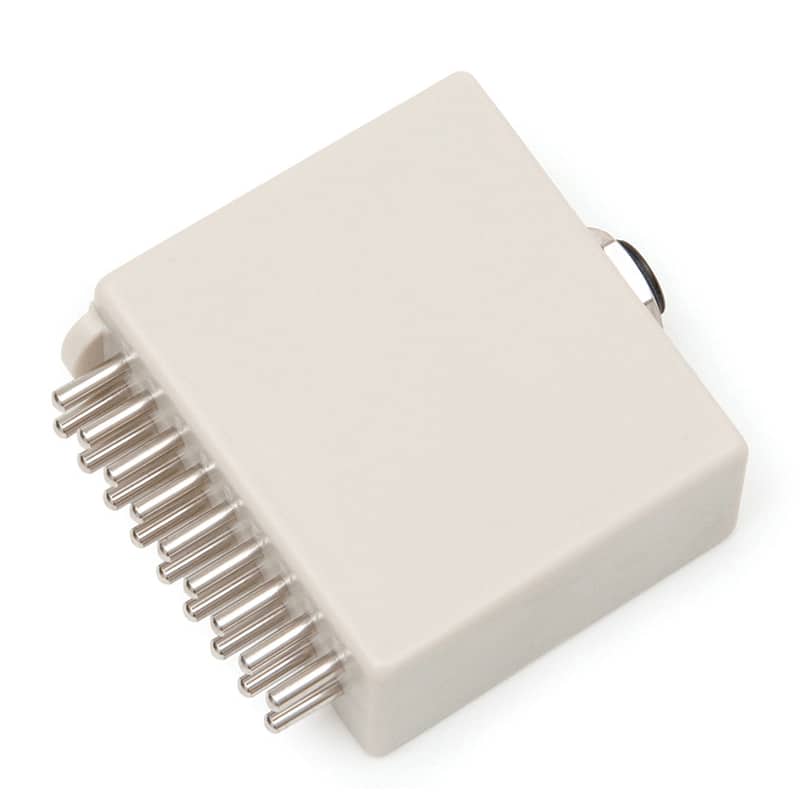

CONVERSION ADAPTOR
Specifically for instances when you have a single universal 1/4″ nurse call device, but not a matching receptacle on the patient station, the conversion adaptor effectively changes the plug style.

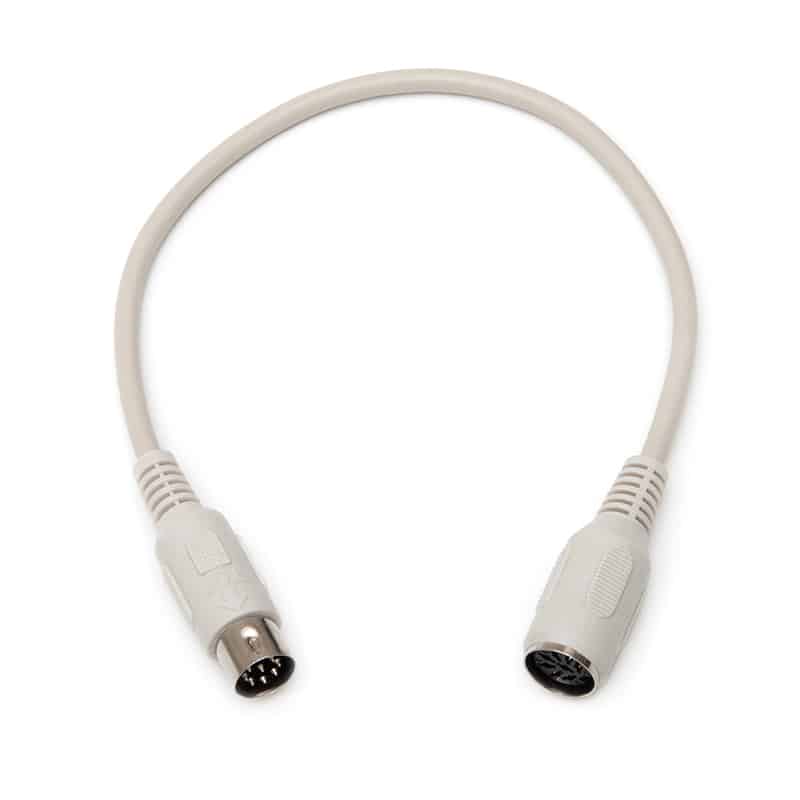

JUMPER ADAPTOR
Help extend the life of your patient station and nurse call device cable with breakaway cables. Choose from 8-pin DIN, 9-pin DIN or 10-pin Modular styles.

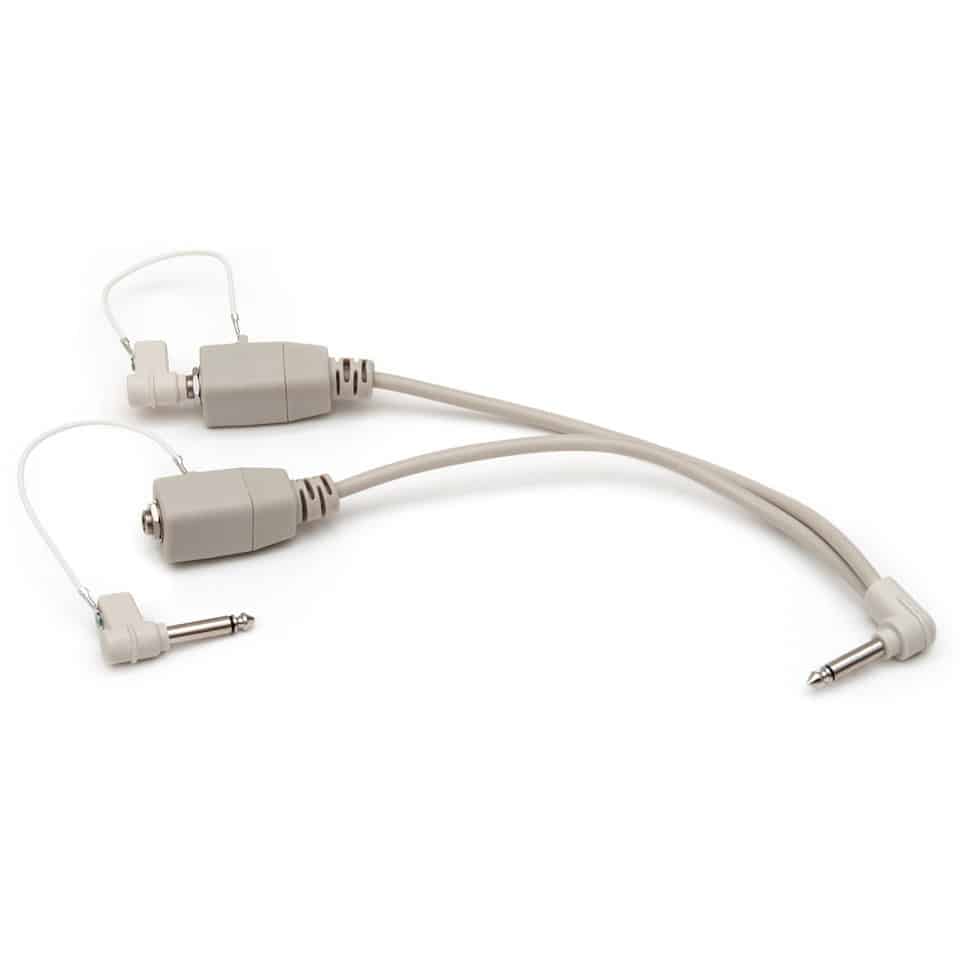

Y ADAPTOR
A Y Adaptor allows two call cords or fall management monitors to function off a single patient station receptacle
BOX ADAPTORS
System | PLUG STYLE | RECEPTACLE 1 | RECEPTACLE 2 | RECEPTACLE 3 | MODEL # | PART # |
---|---|---|---|---|---|---|
Amplion Alert | 15 Pin | 15 Pin | 1/4" jack | – | ADP-1506F-101 | 21077 |
Dukane System 2000, 2010, 2030, 2070 | 13 Pin | 13 Pin | 1/4" jack | – | ADP-0413-101 | 3271 |
13 Pin | 13 Pin | 1/4" jack | 1/4" (TV) | ADP-0413-106 | 3274 | |
Dukane ProCare 4000, 6000, System 2070, Ascom/GE Telligence | 18-pin | 18-pin | 1/4" jack | 1/4" (TV) | ADP-1802-103 | 3354 |
18-pin | 18-pin | 18-pin | – | ADP-1802-104 | 3355 | |
Executone Care/Com, Futura | 7-pin Care/Com | 7-pin Care/Com | 1/4" jack | – | ADP-0307-103 | 3248 |
7-pin Care/Com | 7-pin Care/Com | 1/4" jack | 1/4" (TV) | ADP-0307-109 | 3253 | |
7-pin Care/Com | 7-pin Care/Com | 7-pin Care/Com | – | ADP-0307-106 | 3251 | |
Executone Care/Com, Futura | 7-pin Futura | 7-pin Futura | 1/4" jack | – | ADP-0307-112 | 3254 |
7-pin Futura | 7-pin Futura | 1/4" jack | 1/4" (TV) | ADP-0307-113 | 3255 | |
7-pin Futura | 7-pin Futura | 7-pin Futura | – | ADP-0307-111 | 14299 | |
Hill-Rom COMposer, COMLinx, NaviCare | 20-pin | 20-pin | 1/4" jack | – | ADP-2020-101 | 3367 |
20-pin | 20-pin | 1/4" jack | 1/4" (TV) | ADP-2020-102 | 3368 | |
Critical Alert, Intego, TekTone, Wescom, West-Com | 8-pin Modular | 8-pin Modular | 1/4" jack | – | ADP-0808-101 | 3322 |
8-pin Modular | 8-pin Modular | 1/4" jack | 1/4" (TV) | ADP-0808-102 | 3323 | |
8-pin Modular | 8-pin Modular | 8-pin Modular | – | ADP-0808-103 | 3324 | |
Jeron Provider 680 | 8-pin DIN | 8-pin DIN | 1/4" jack | – | ADP-0800-101 | 3283 |
Rauland Responder III | 12-pin | 12-pin | 1/4" jack | – | ADP-0412-101 | 3266 |
12-pin | 12-pin | 1/4" jack | 1/4" (TV) | ADP-0412-102 | 3267 | |
12-pin | 12-pin | 12-pin Rauland | – | ADP-0412-103 | 3268 | |
Rauland Responder III+, IV | 8-pin DIN | 8-pin DIN | 1/4" jack | – | ADP-0800-113 | 3294 |
8-pin DIN | 8-pin DIN | 1/4" jack | 1/4" (TV) | ADP-0800-117 | 3297 | |
8-pin DIN | 8-pin DIN | 8-pin DIN | – | ADP-0800-118 | 3298 | |
Rauland Responder 4000 | 8-pin DIN | 8-pin DIN | 8-pin DIN | – | ADP-0800-110 | 3291 |
8-pin DIN | 8-pin DIN | 8-pin DIN | 1/4" jack | ADP-0800-115 | 3296 | |
SimplexGrinnell EZCare | 15-pin | 15-pin | 1/4" Jack | – | ADP-1500F-101 | 3349 |
15-pin | 15-pin | 1/4" Jack | 1/4" Jack (TV) | ADP-1500F-102 | 3350 | |
Sylvania/HCE | 20-pin | 20-pin | 1/4" Jack | 1/4" Jack (TV) | ADP-0320F-104 | 3263 |
West-Com | 10-pin Modular | 10-pin Modular | 1/4" jack | – | ADP-1010-102 | 3341 |
Zettler Sentinel 500 | 9-pin D-sub | 9-pin D-sub | 1/4" jack | – | ADP-0909-103 | 3329 |
Universal 37-Pin | 37-pin D-sub | 37-pin D-sub | 1/4" jack | – | ADP-3703-101 | 16659 |
CONVERSION ADAPTORS
JUMPER ADAPTORS
System | PLUG STYLE | RECEPTACLE 1 | RECEPTACLE 2 | RECEPTACLE 3 | MODEL # | PART # |
---|---|---|---|---|---|---|
Jeron Provider 680 and 790 | 8-pin DIN | 8-pin DIN | 1/4" jack | – | JUP-1101-002 | 18194 |
Rauland Responder III+, IV | 8-pin DIN | 8-pin DIN | 1/4" jack | – | JUP-1101-001 | 18193 |
Rauland Responder III+, IV | 8-pin DIN | 8-pin DIN | 8-pin DIN | – | JUP-1100-002 | 18154 |
Rauland Responder III+, IV | 8-pin DIN | 8-pin DIN | – | – | JUP-1000-010-002 | 8482 |
Rauland Responder 4000 | 8-pin DIN | 8-pin DIN | 8-pin DIN | – | JUP-1100-002 | 18154 |
West-Com | 10-pin Modular | 10-pin Modular | – | – | JU06-311 | 8124 |
Universal 1/4" | 1/4" plug | 1/4" jack | 1/4" jack | – | JUP-1052-002-001 | 8507 |
1/4" plug | 1/4" jack | – | – | JUP-1050-001-001 | 8498 |
Y ADAPTORS
System | PLUG STYLE | RECEPTACLE 1 | RECEPTACLE 2 | RECEPTACLE 3 | MODEL # | PART # |
---|---|---|---|---|---|---|
Jeron Provider 680, 680+, and 790 | 8-pin DIN | 8-pin DIN | 1/4" jack | – | JUP-1101-002 | 18194 |
Rauland Responder III+, IV | 8-pin DIN | 8-pin DIN | 8-pin DIN | – | JUP-1100-001 | 18153 |
8-pin DIN | 8-pin DIN | 1/4" jack | – | JUP-1101-001 | 18193 | |
Rauland Responder 4000 | 8-pin DIN | 8-pin DIN | 8-pin DIN | – | JUP-1100-002 | 18154 |
Universal 1/4" | 1/4" plug | 1/4" jack | 1/4" jack | – | Call for Part Number | Call for Part Number |
