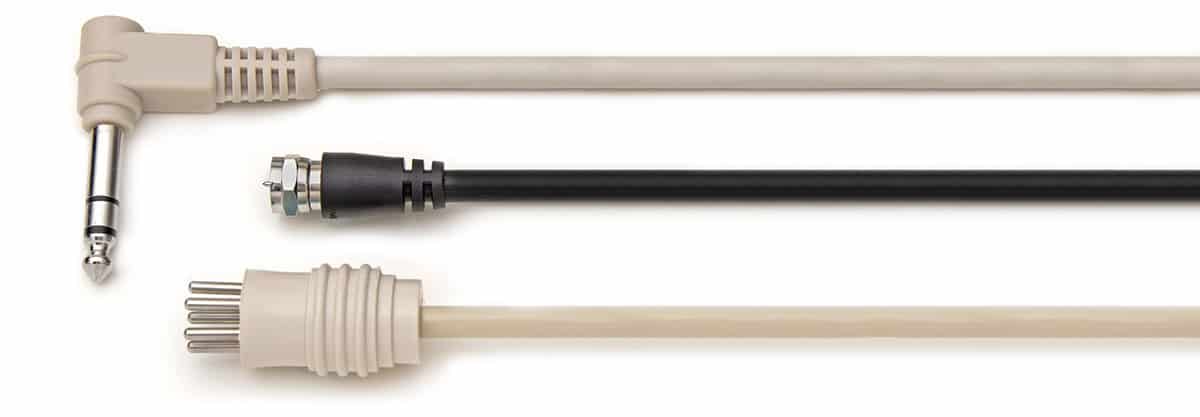

TV JUMPER CABLES
Hospitals and installers have relied on Curbell for years to supply television jumper cables with a wide variety of plug styles, and our close relationships with healthcare television manufacturers ensures that the wiring is correct and up-to-date.
- Dozens of configurations
- Standard 36″ length
- Custom lengths available
| PLUG END 1 | PLUG END 2 | MODEL NUMBER | PART NUMBER |
|---|---|---|---|
| 1/4" Female | 1/4" plug | JU06-550 | 8132 |
| 1/4" Female | 1/8" 3-Conductor | JU36-781 | 8322 |
| 1/4" Female | 1/8" 4-Conductor | JU36-513 | 8284 |
| 1/4" Female | 6-pin Zenith | JU36-430 | 8270 |
| 1/4" | 1/4" plug | JU36-030 | 8211 |
| 1/4" | 1/8" 3-Conductor | JU36-780 | 8321 |
| 1/4" | 1/8" 4-Conductor | JU36-503 | 8278 |
| 1/4" | 5-pin Female RCA | JU36-005 | 8201 |
| 1/4" | 5-pin RCA | JU36-040 | 8213 |
| 1/4" | 5-pin DIN | JU36-TBD | TBD |
| 1/4" | RJ12 | JU36-280 | 8259 |
| 1/4" | 6-pin Zenith | JU36-050 | 8215 |
| 1/8" 3-Conductor | 1/8" 3-conductor | JU36-777 | 8319 |
| 1/8" 3-Conductor | 5-pin | JU36-770 | 8317 |
| 1/8" 3-Conductor | 6-pin Zenith | JU36-720 | 8310 |
| 1/8" 4-Conductor | 5-pin | JU36-505 | 8280 |
| 1/8" 4-Conductor | 6-pin Zenith Female | JU36-516 | 8285 |
| 1/8" 4-Conductor | 6-pin Zenith | JU36-506 | 8281 |
| 5-pin RCA | 5-pin RCA | JU36-070 | 8219 |
| 5-pin RCA | RJ12 | JU36-140 | 8237 |
| 6-pin Zenith | 5-pin Female RCA | JU36-330 | 8265 |
| 6-pin Zenith | 5-pin RCA | JU36-090 | 8224 |
| 6-pin Zenith | 5-pin DIN | JU36-TBD | TBD |
| 6-pin Zenith (3 pins wired) | 6-pin Zenith (3 pins wired) | JU36-110 | 8228 |
| 6-pin Zenith (all pins wired) | 6-pin Zenith (all pins wired) | JU36-120 | 8233 |
| 6-pin Zenith | RJ12 | JU36-150 | 8239 |
| 6-pin Zenith | bare wire | JU36-095 | 8225 |
| Coax | Coax | JU36-010 | 8204 |
| RJ45 | 6-pin Zenith | JU36-TBD | TBD |
| RJ45 | 1/8" 3-conductor | JU36-TBD | TBD |
DOWNLOADS
Contact us today for more information
Call us at 1-800-235-7500 or click the button below.
