RECEPTACLE KITS
Receptacle kits provide a dedicated bed port for professional connection to communication side rail beds
- Stainless steel wall plate
- Three dedicated pigtail sets (nurse call, entertainment, lighting) for easy routing of wire sets
- Individual conductors are stripped 1″
- One year warranty
Common styles are shown below. Contact your Curbell Sales Representative for additional styles.

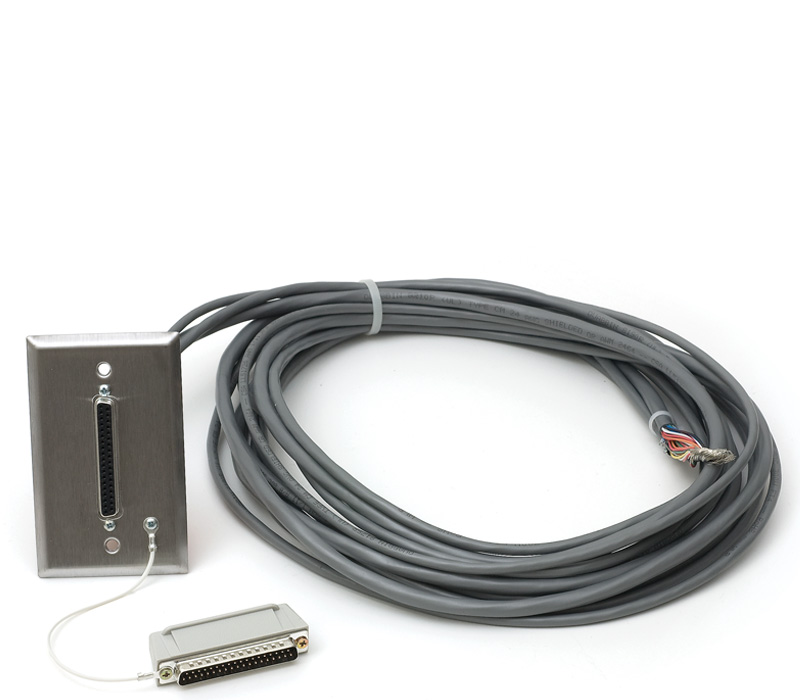

RK-060: 8′ pigtails
RK-070: 12′ pigtails (pictured)
RK-100: 20′ pigtails
RK-070: 12′ pigtails (pictured)
RK-100: 20′ pigtails

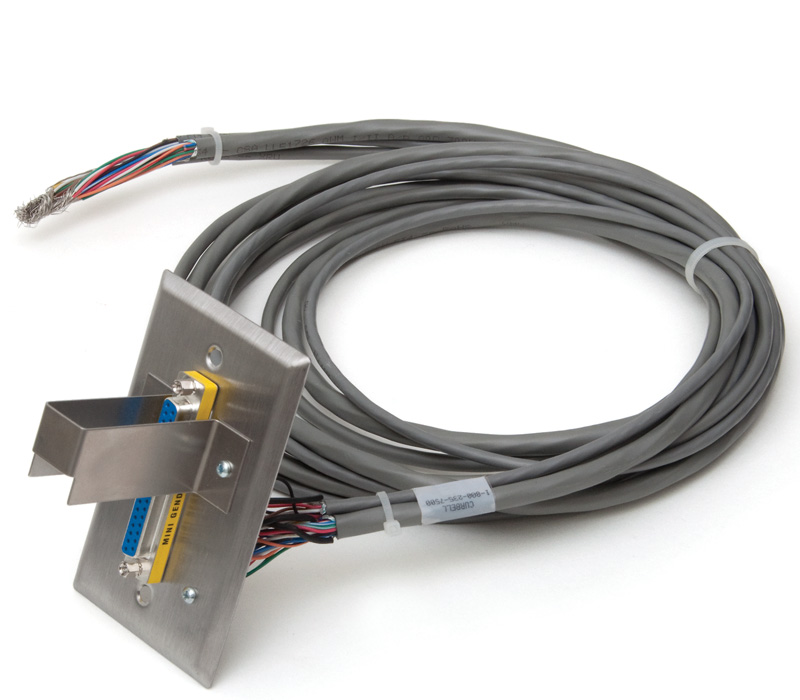

RCK-1030-096
with a mounting bracket
for inline cables
with a mounting bracket
for inline cables

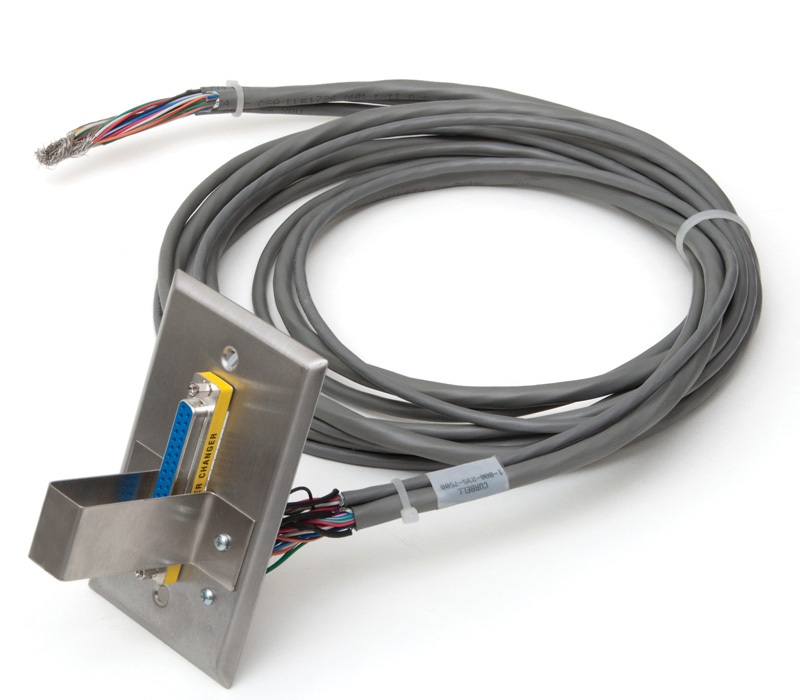

RCK-1021-096
with a mounting bracket
for 90º cables
with a mounting bracket
for 90º cables

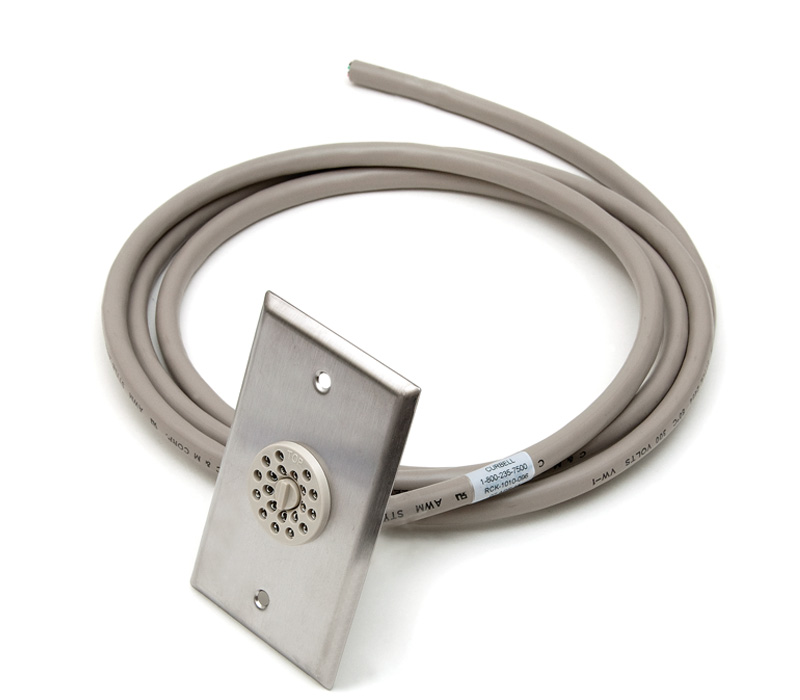

RCK-1010-096
with a 20-pin connector
with a 20-pin connector
| PINS | LENGTH | DUMMY PLUG | MOUNTING BRACKET | MODEL # | PART # |
|---|---|---|---|---|---|
| 37 | 8' | yes | no | RK-060 | 13102 |
| 37 | 12' | yes | no | RK-070 | 13104 |
| 37 | 20' | yes | no | RK-100 | 13108 |
| 37 | 8' | no | for inline cables | RCK-1030-096 | 13040 |
| 37 | 8' | no | for 90º cables | RCK-1021-096 | 13038 |
| 20 | 8' | no | no | RCK-1010-096 | 13028 |
