LVC-2000 SERIES LOW VOLTAGE CONTROLLERS

Low Voltage Controllers enable users to safely operate the high-voltage lighting found in hospital and nursing home rooms with their pillow speaker or bed communication side rail. They’re tested and approved for use with all nurse call systems that use a switch with normally-open momentary dry contacts for auxiliaries.



LVC-2000-001

  • For use with fluorescent, LED, and other lamp types
  • Supports one-direction dimming 100% to off

LVC-2000-004

  • For LED lamps only
  • Supports bi-directional dimming with quick on/off

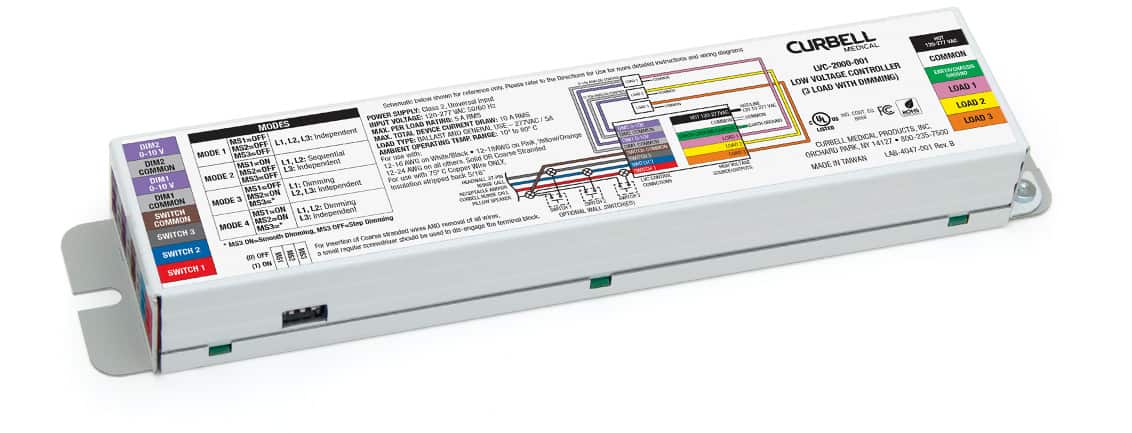

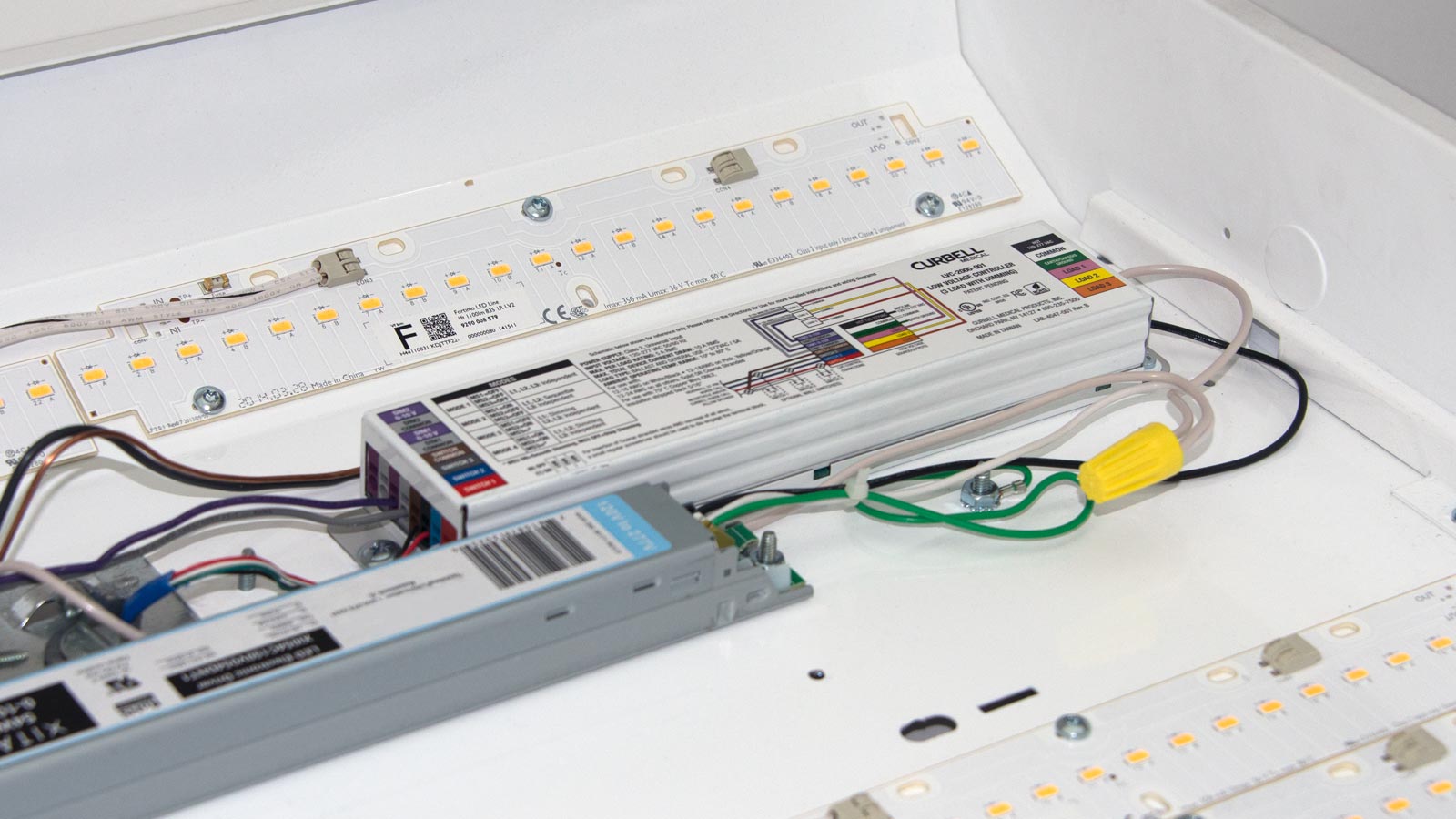

The small size allows it to mount  inside a lighting fixture.

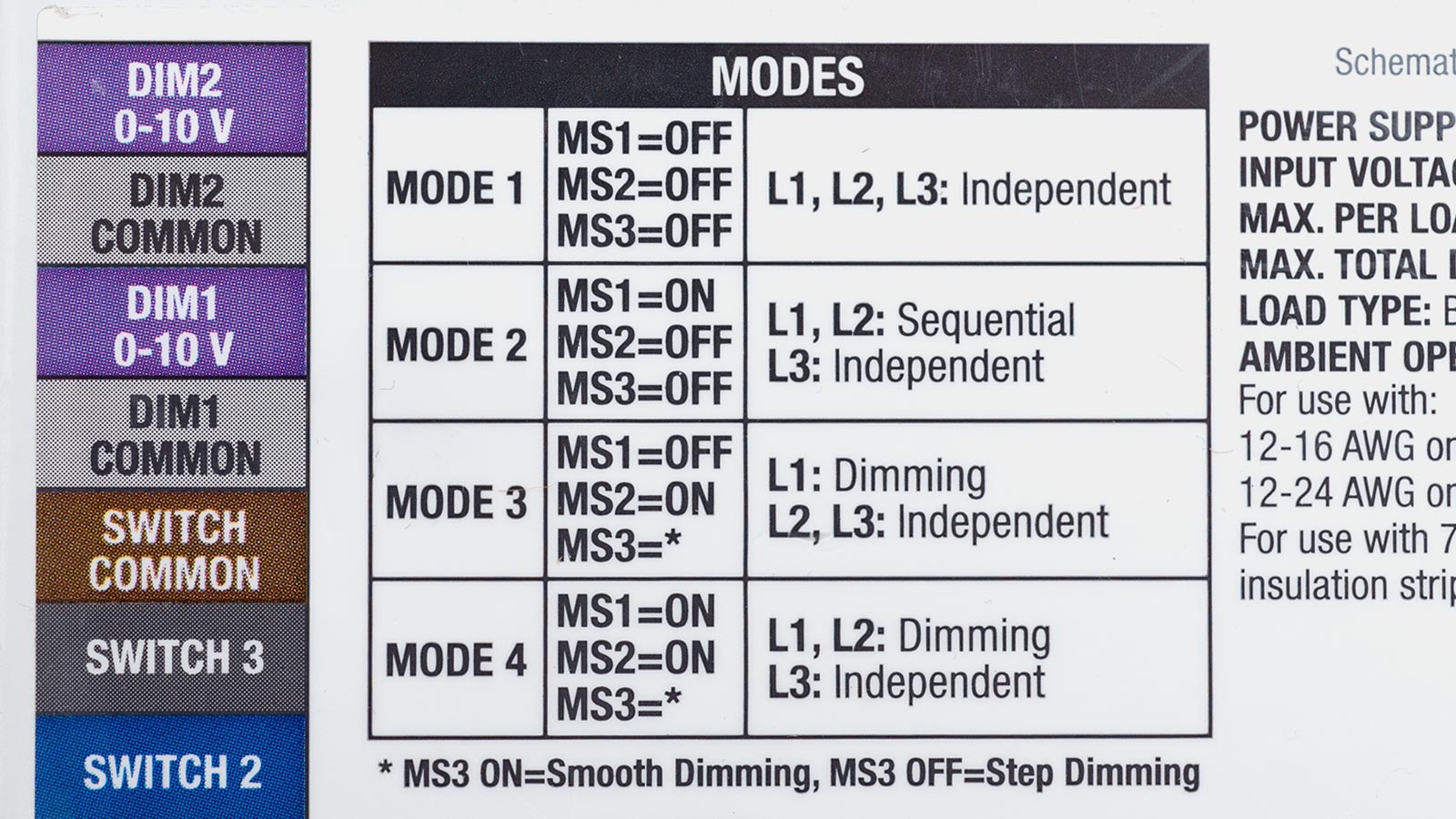

Four modes allow for numerous configurations including dimming.

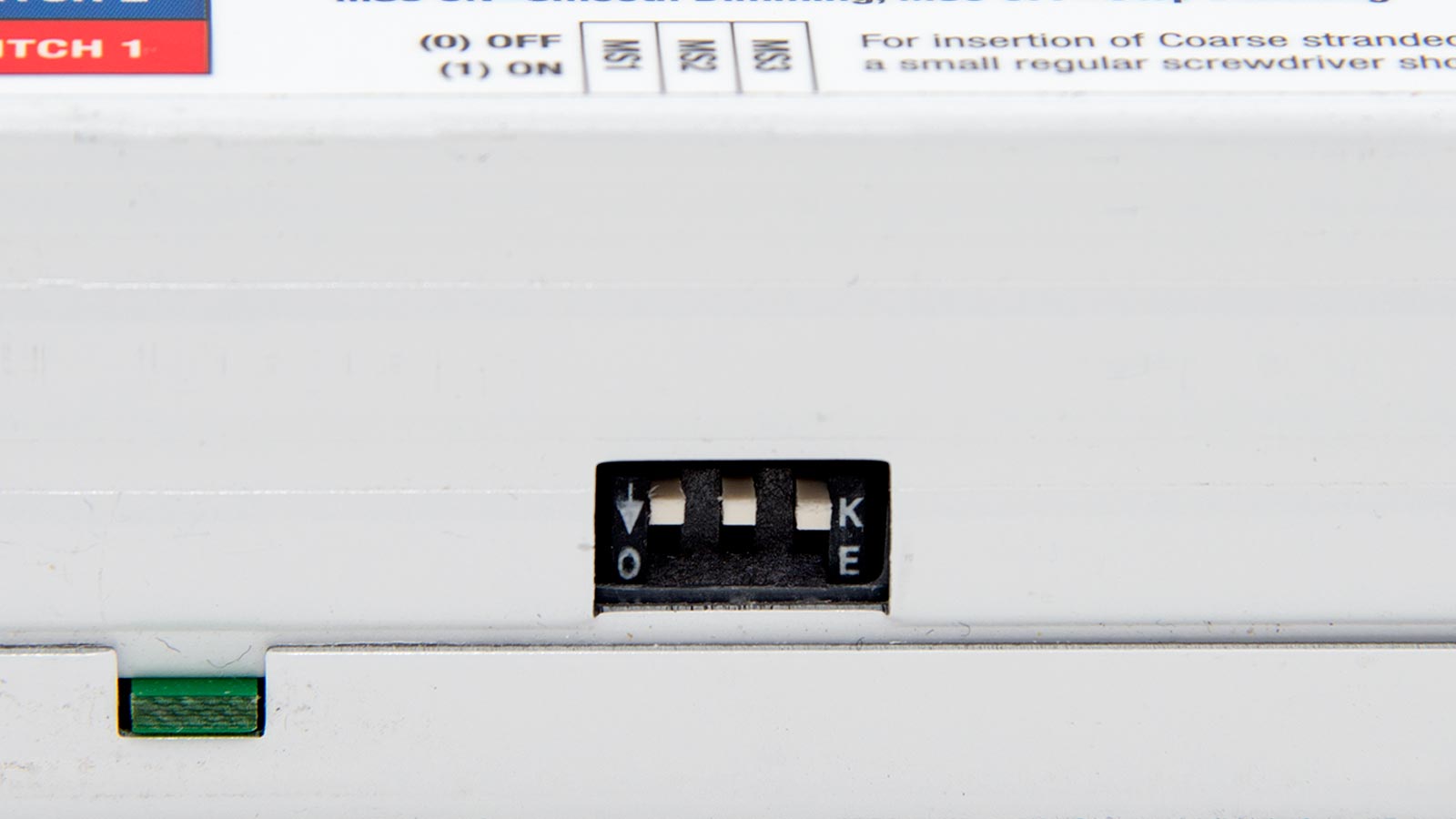

Side-mounted DIP switches let you switch between modes before installation.

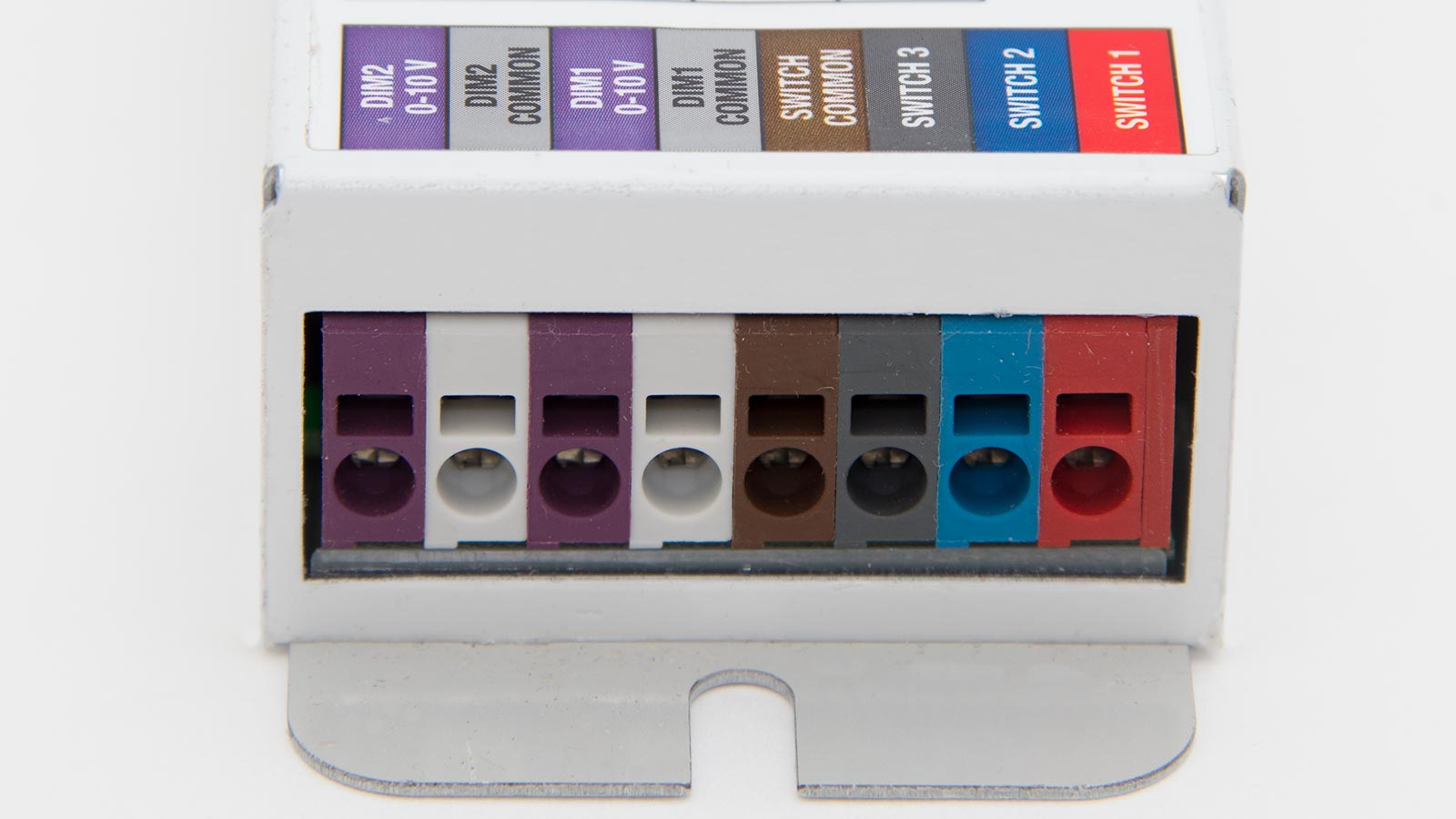

Color-coded push pin connectors make installation quick and simple.

FEATURES

  • True universal voltage (120 to 277 VAC)
  • The LVC-2000 series can control lights with multiple modes of operation:
    • Three loads independently
    • Two loads sequentially and a third Load independently
    • One load independently with 0-10V dimming control and second and third load independently
    • Two loads independently with 0-10V dimming control and a third load independently
  • Safe for use near medical equipment that is sensitive to electromagnetic noise
  • Can be used to operate high-voltage circuits such as lights, electric doors, and drapes
  • Can be controlled from a pillow speaker, bed side rail, or wall switch with normally-open momentary dry contacts
  • Patent Pending
  • Industry-leading three year warranty

SPECIFICATIONS

 LVC-2000-001LVC-2000-004
Input Voltage120-277 VAC, 60 Hz
277 VAC, 5 A, General Use
277 VAC, 5 A, Ballast
RMS current should not exceed 5 amps per load
120-277 VAC, 60 Hz
277 VAC, 5 A, General Use
277 VAC, 5 A, Ballast
RMS current should not exceed 5 amps per load
Load Type277 VAC, 5 A, General Use per Load
277 VAC, 5 A, Ballast per Load
Maximum total device current: 10 A
277 VAC, 5 A, General Use per Load
277 VAC, 5 A, Ballast per Load
Maximum total device current: 10 A
Output Voltage120-277 VAC, 60 Hz120-277 VAC, 60 Hz
Output Devices• Three 30 amp relays driven by low voltage microcontroller
• ESD protected
• Three 30 amp relays driven by low voltage microcontroller
• ESD protected
Dimming ControlCurrent sourcing 0-10V 100% to offCurrent sourcing 0-10V bi-directional with quick on/off
Low Voltage Momentary Switch RequirementsDry contacts, momentary, normally open,
capable of switching 5 VDC @ 0.5 mA
Dry contacts, momentary, normally open,
capable of switching 5 VDC @ 0.5 mA
LampNo restrictionsLED lamps only
Switching Circuits
Operation Voltage
5 VDC @ 0.5 mA5 VDC @ 0.5 mA
Power Supply ClassificationUL listed switch mode power supplyUL listed switch mode power supply
Operating Temp. Range50º to 176º F (10º to 80º C)50º to 176º F (10º to 80º C)
External wires
• White/Black: 12-16 AWG, solid or coarse stranded
• Pink, Yellow, Orange, Green: 12-18 AWG, solid or coarse stranded
• All other wires: 12-24 AWG, solid or coarse stranded
• For use with 75º C Copper Wire ONLY, insulation stripped back 5/16"
• Ensure that wire used exceeds corresponding voltage ratings
• White/Black: 12-16 AWG, solid or coarse stranded
• Pink, Yellow, Orange, Green: 12-18 AWG, solid or coarse stranded
• All other wires: 12-24 AWG, solid or coarse stranded
• For use with 75º C Copper Wire ONLY, insulation stripped back 5/16"
• Ensure that wire used exceeds corresponding voltage ratings
MountingMounts next to a lighting ballast in lighting applications or remotely in a five-gang masonry boxMounts next to a lighting ballast in lighting applications or remotely in a five-gang masonry box
Housing.032" Galvanized Zinc-Plated Steel.032" Galvanized Zinc-Plated Steel
Dimensions
9" with tabs (L) x 1.90" (W) x 1.10" (H)9" with tabs (L) x 1.90" (W) x 1.10" (H)
WarrantyThree YearsThree Years
