LOW VOLTAGE CONTROLLER
WALL SWITCH

Curbell’s Low Voltage Controller Wall Switch is designed to allow the clinical staff to easily access patient room lighting. It can be placed at the entrance of the room, next to the patient’s bed, or anywhere in the patient room that is convenient for the staff. Different control configurations can be used together to create customized access without needlessly complicating the installation. The low voltage switch is wired in parallel with the pillow speaker, handheld pendants, bed side rail, and/or Curbell Remote Entertainment Station to the low voltage side of the Curbell low voltage controller.

  • Provides easy access for clinicians
  • Controls up to five separate lights/loads
  • Seamlessly integrates with any nurse call system
  • Allows staff to dim the lights (when used with a Curbell dimming LVC)
  • Quick on/off of any light (load)
  • Two year warranty
WPA-1000-001 with wiring

CONFIGURATIONS:

Shown here are our most popular configurations, but many more are available, and we can also create a custom configuration to meet your requirements. Contact your Curbell representative for more information.

WPA-1000-005

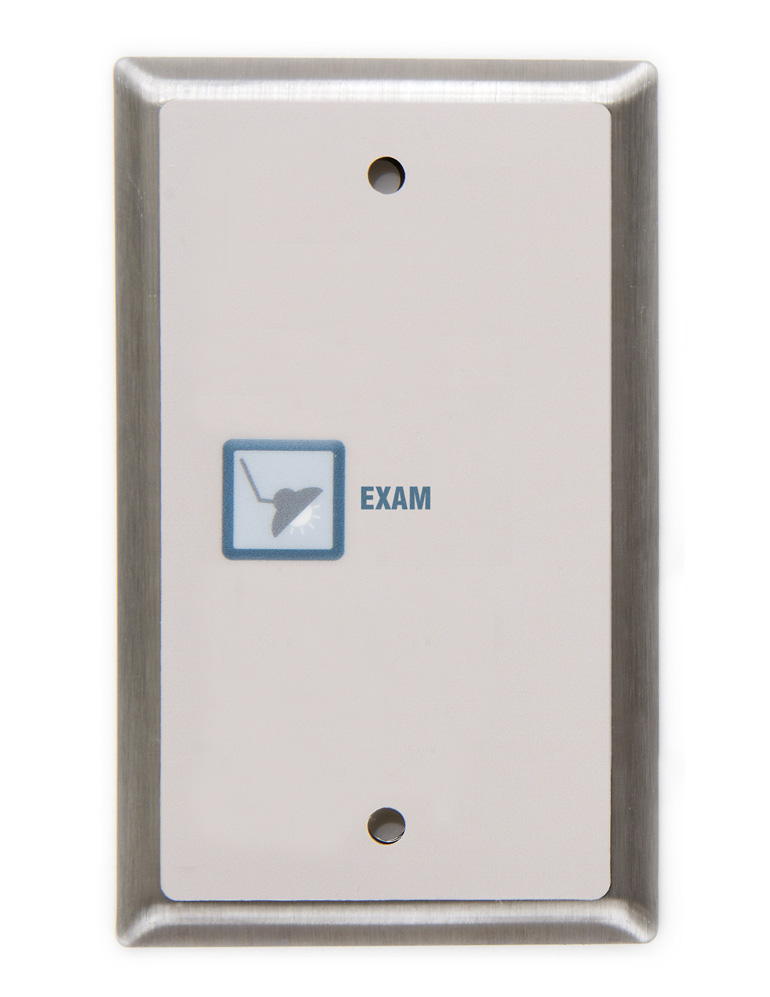

WPA-1000-008

WPA-1000-006

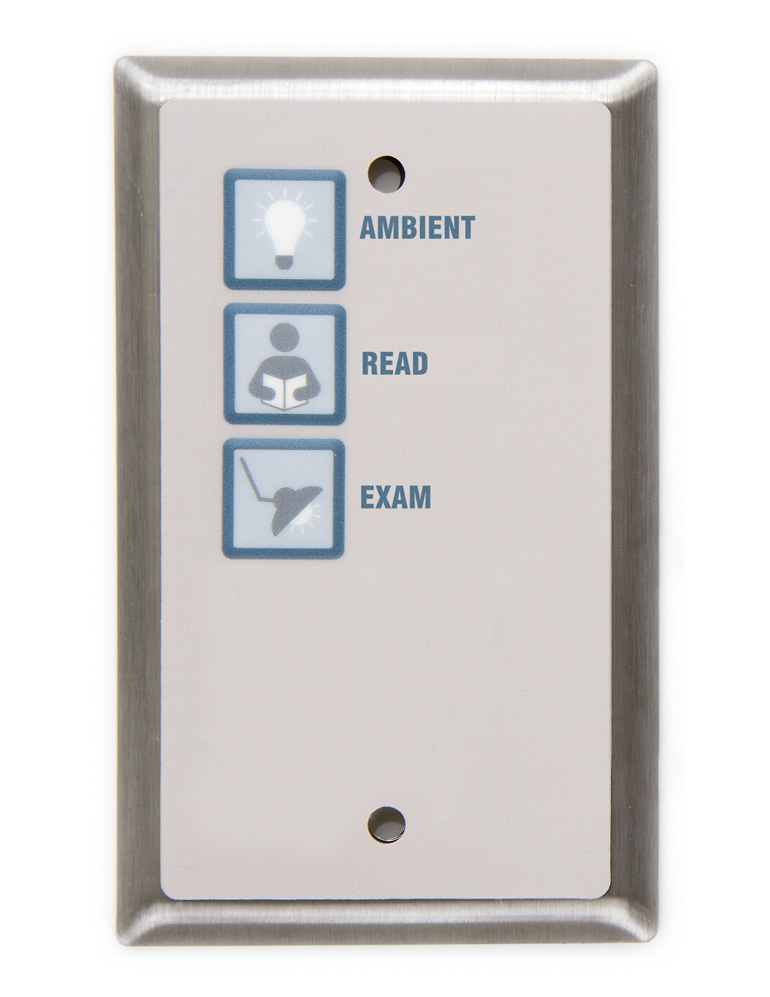

WPA-1000-010

WPA-1000-007

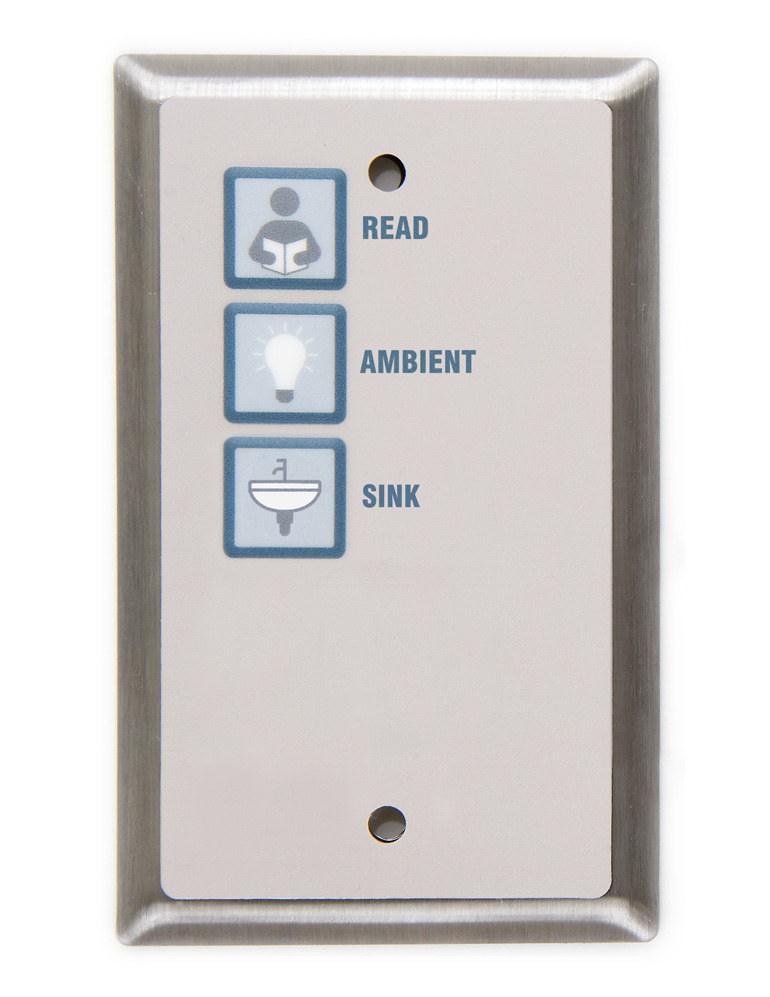

WPA-1000-013

MODELConfigurationPART #
WPA-1000-001Read, Ambient, Night, Exam, Chart21190
WPA-1000-003Read, Night, Ambient, Exam21191

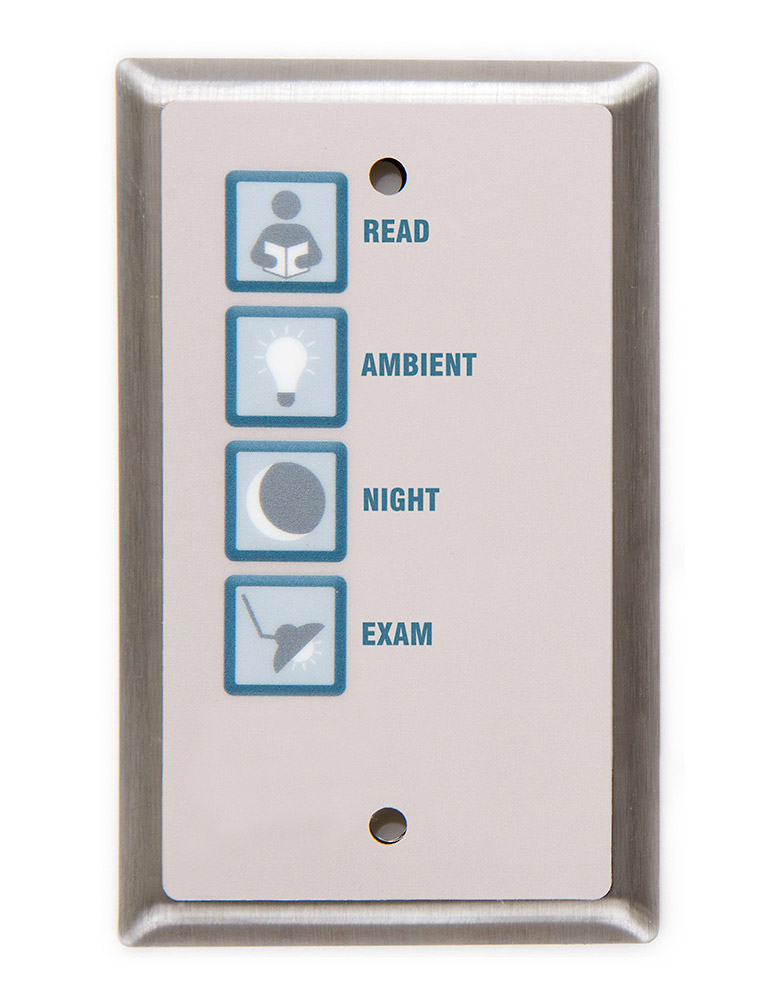

WPA-1000-004Read, Ambient, Night, Exam 21192
WPA-1000-005Read, Ambient, Night 21193
WPA-1000-006Read, Ambient21194
WPA-1000-007Ambient21195
WPA-1000-008Exam21270
WPA-1000-010Ambient, Read, Exam 21794
WPA-1000-011Ambient, Night22166
WPA-1000-012Exam, Ambient22323
WPA-1000-013Read, Ambient, Sink22325
WPA-1000-014Sink22326
WPA-1000-015Entry, Ceiling, Wall, Night23379
WPA-1000-016Shade up, Shade Down23401
WPA-1000-017Read, Ambient, Exam24800
