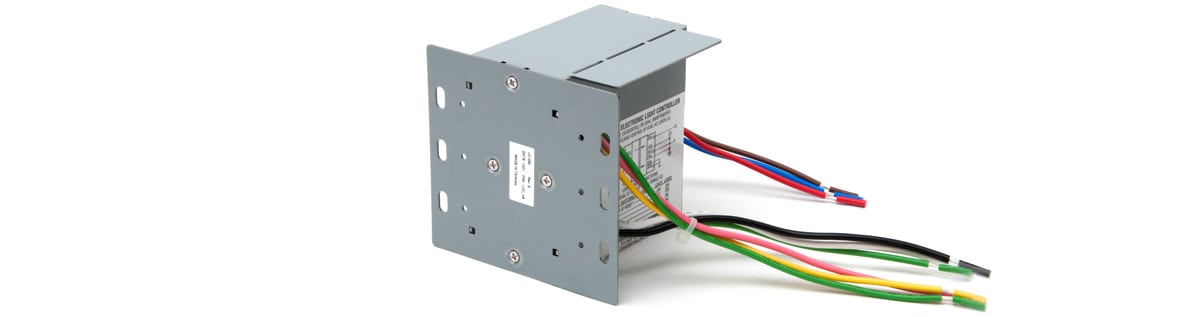

LC-050 LOW VOLTAGE CONTROLLER

Low Voltage Controllers enable users to safely operate the high-voltage lighting found in hospital and nursing home rooms with their pillow speaker or bed communication side rail. They’re tested and approved for use with all nurse call systems that use a switch with normally-open momentary dry contacts for auxiliaries.

FEATURES

  • For use with fluorescent, LED, and other lamp types

  • Can be used to operate high-voltage circuits such as lights, electric doors, and drapes

  • Can be controlled from a pillow speaker, bed side rail, or wall switch with normally-open momentary dry contacts

  • Controls two loads independently, or two loads sequentially

  • Safe for use near medical equipment that is sensitive to electromagnetic noise

  • UL/C-UL Listed to UL 508 • Compliant with FCC, Title 47 CFR 15 – Class B • RoHS compliant



SPECIFICATIONS

 LC-050
Input Voltage210-280 VAC, 60 Hz
RMS current should not exceed 5 amps
RMS current should not exceed 5 amps per load
Load Type277 VAC, 5 A, General Use per Load
277 VAC, 5 A, Ballast per Load
Maximum total device current: 10 A
Lamp TypeFluorescent, LED, and other lamp types
Output Voltage210-280 VAC, 60 Hz
Output Devices• Two 10 amp relays driven by low voltage microcontroller
• ESD protected
Dimming ControlNA
Low Voltage Momentary Switch RequirementsDry contacts, momentary, normally open, capable of switching 5 VDC @ 0.5 mA
Switching Circuits Operation Voltage5 VDC @ 2.3 mA
Power Supply ClassificationIsolation from line voltage via a Class 2 transformer
Operating Temp. Range40º to 105º F (5º to 40º C)
External wires
• White/Black: 16 AWG stranded
• All other wires: 18 AWG stranded
Mounting3.5" deep masonry box, four gang min.
• May be mounted in a five gang masonry box with physical separation between high and low voltage
Housing.058" Galvanized Zinc-Plated Steel
Dimensions
3.5" (L) x 3.5" (W) x 3.8" (D)
WarrantyOne Year
