CORDED BED AND CHAIR SENSOR PADS
To meet the needs of different patients and situations, Curbell’s sensor pads are available in a variety of sizes and styles.
- Larger pad sizes provide more surface area for monitoring restless patients, thus reducing nuisance alarms
- Smaller pad sizes allow for more immediate alarm notification if the patient shifts out of normal position
- Three usable lifespans:
- 14 day (short-term, single patient use)
- 30 day pads (short-term, single patient use)
- 18 Month pads (reusable)
- Two styles: Corded, Corded Timed
- 18 month pads can be folded in half for easy storage


CORDED
Corded pads are a good choice when you need a simple sensor for your monitor. The breakaway cable (on 30 day and 18 month pads) allows connectors to separate under strain to minimize cord and monitor damage.

TIMED
An internal clock counts down the life of the pad based on when the pad is connected, allowing you to extend the usable period of the pad. The monitor will notify you when to replace the pad.
LIFESPAN | PAD STYLE | 7" x 15" CHAIR PADS | 10" x 15" CHAIR PADS | 4" x 30" BED PADS | 10" x 30" BED PADS |
---|---|---|---|---|---|
![]() | ![]() | ![]() | ![]() |
||

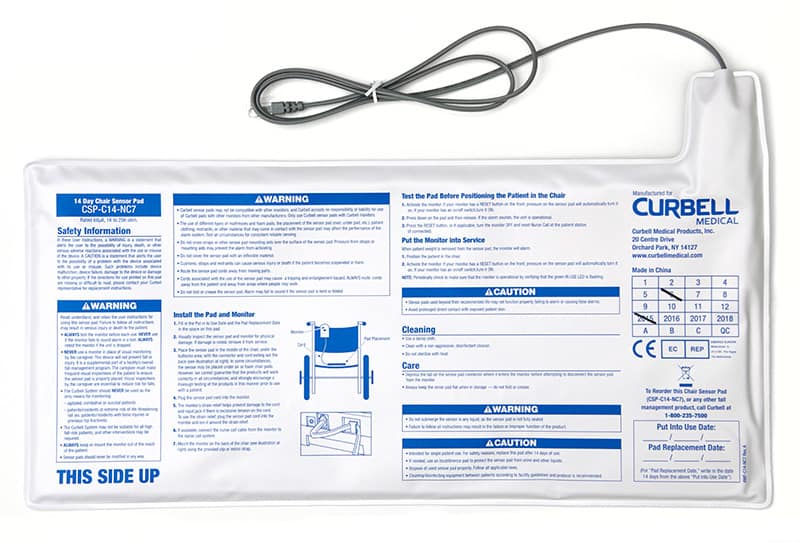

14 Day | ![]() | CSP-C14-NC7 (10 pack) | — | CSP-B14-NC4 (10 pack) | — |
30 Day | ![]() | — | CSP-C30-NC10 (10 pack) | CSP-B30-NC4 (10 pack) | — |
18 Month | ![]() ![]() | — | CSP-C18MO-TC10-34 (34" cord) CSP-C18MO-TC10-92 (92" cord) | — | CSP-B18MO-TC10-92 |
CORDED SENSOR PAD REPLACEMENT PARTS
MODEL | DESCRIPTION | MODEL NUMBER | |
---|---|---|---|
![]() | Replacement Bed Pad Breakaway Cable for 14 and 30 day bed pads | 80" Breakaway Cable | CSP-BCR |
![]() | Replacement Chair Pad Breakaway Cable for 14 and 30 day chair pads | 34" Breakaway Cable | CSP-CCR |
![]() | Replacement Bed Pad Breakaway Cable for 18 month bed pads | 92" Breakaway Cable | CSP-BC-92 |
![]() | Replacement Chair Pad Breakaway Cable for 18 month chair pads | 34" Breakaway Cable | CSP-CC-34 |
![]() | Replacement rubber band/clip | For securing 4" x 30" bed sensor pads to mattresses | CSP-BCS |
